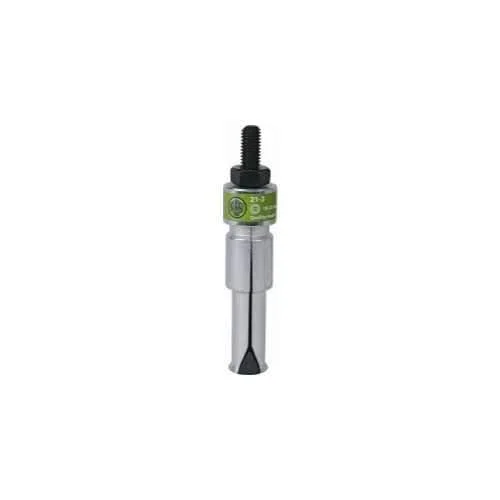

21-3 Kukko Internal Extractor

Description

 Product Data Sheet Description The 2-shell design with extra large grasp edges ensures safe extraction. When combined with the internal extractors, extensions from series 21-V enable deeper bearings to be extracted. How it works Place the internal extractor into the bearing's hole. The internal extractors are equipped with an internal safety stop to protect against excess spreading and overloading. Advantage KUKKO internal extractors can be combined with counter supports (22-1 or 22-2)) and slide hammer (22-0). Make sure that the arms are parallel. Advantage KUKKO internal extractors can be combined with counter supports (22-1 or 22-2)) and slide hammer (22-0). Mechanical pressure screw. The counter support's arms must not block the part due to be removed. For extracting inner bearings, bearing outer rings and bushings. Make sure that the jaws sit securely below the bearing's inner race. The internal extractors are equipped with an internal safety stop to protect against excess spreading and overloading. Using a ring spanner, tighten the nuts to open the jaws of the internal extractor. Spare parts are available for internal extractor sizes 21-89 and 21-90. Counter support: 2. For removal, the spindle on the counter support series 22 or on the slide hammer series 22-0 is screwed onto the key spindle on the internal extractor.

Key Features

•  Product Data Sheet Description The 2-shell design with extra large grasp edges ensures safe extraction.
• Advantage KUKKO internal extractors can be combined with counter supports (22-1 or 22-2)) and slide hammer (22-0).
• The internal extractors are equipped with an internal safety stop to protect against excess spreading and overloading.
• For extracting inner bearings, bearing outer rings and bushings.
• For removal, the spindle on the counter support series 22 or on the slide hammer series 22-0 is screwed onto the key spindle on the internal extractor.
• The counter support's arms must not block the part due to be removed.
