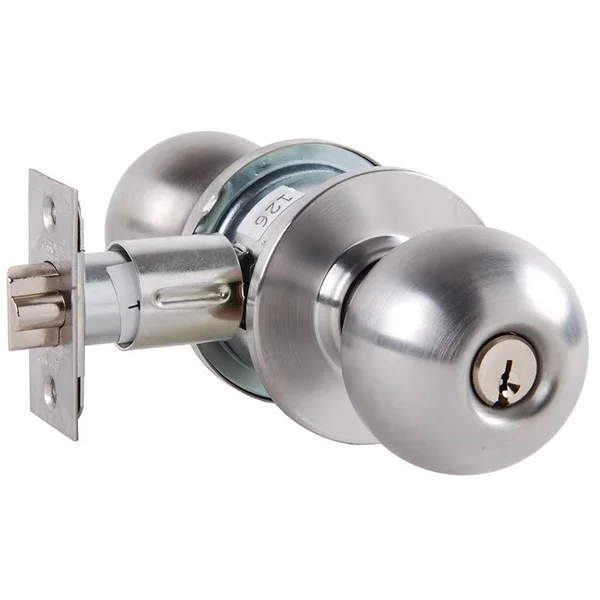

Arrow MK12TA 26D Cylindrical Lock

Description

Cylinder, Standard – Solid brass 6 pin cylinder with Arrow “A” keyway, keyed to 5 pin for stock. Lock Chassis – Cold rolled steel with zinc dichromate finish for corrosion resistance. Standard faceplate for 2-3/8” (60.32.mm) backset measures 2-1/4” (57.15mm) x 1” (25.40mm) with a flat front, for 2-3/4” (69.85mm) backset standard faceplate measures 2-1/4” (57.15mm) x 1-1/8” (28.57mm) with beveled front 1/8” (3.17mm) in 2” (50.8mm). Standard “T” strike measures 2-3/4" (69.85mm) x 1-1/8" (28.57mm). Can be masterkeyed, grandmaster keyed and construction masterkeyed. Conventional cylinders are also available in a variety of competitive manufacturer’s keyways. Strike – Brass, bronze or stainless steel. Available in Schlage CS keyway and other competitive keyways. The MK Series is available in several finishes and functions that make them ideal for commercial applications where heavy duty grade one hardware may not be necessary. Door Thickness – 1-3/8" (34.92mm) to 1-3/4" (44.45mm). 2-3/4" (69.85mm), 3-3/4" (95.25mm) and 5" (127mm) available. Latch – Brass with 1/2" (12.7mm) throw. 7/8" (22.225mm) bore in edge of door is required. Handing– Reversible. Arrow MK Series offer the designer, architect and contractor simple solutions to accessibility requirements. Latch Front – Brass, bronze or stainless steel. Latch housing is steel, with zinc dichromate finish for corrosion resistance. Backset – 2-3/8" (60.32mm) standard. Supplied with two 5 pin brass keys for stock.

Key Features

• Door Thickness – 1-3/8" (34.92mm) to 1-3/4" (44.45mm).
• Standard “T” strike measures 2-3/4" (69.85mm) x 1-1/8" (28.57mm).
• Optional ANSI A115.1 strike measures 4-7/8" (123.82mm) x 1-1/4" (31.75mm).
• Requires standard 2-1/8" (53.97mm) bore through door.
• Standard faceplate for 2-3/8” (60.32.mm) backset measures 2-1/4” (57.15mm) x 1” (25.40mm) with a flat front, for 2-3/4” (69.85mm) backset standard faceplate measures 2-1/4” (57.15mm) x 1-1/8” (28.57mm) with beveled front 1/8” (3.17mm) in.
• 2-3/4" (69.85mm), 3-3/4" (95.25mm) and 5" (127mm) available.
