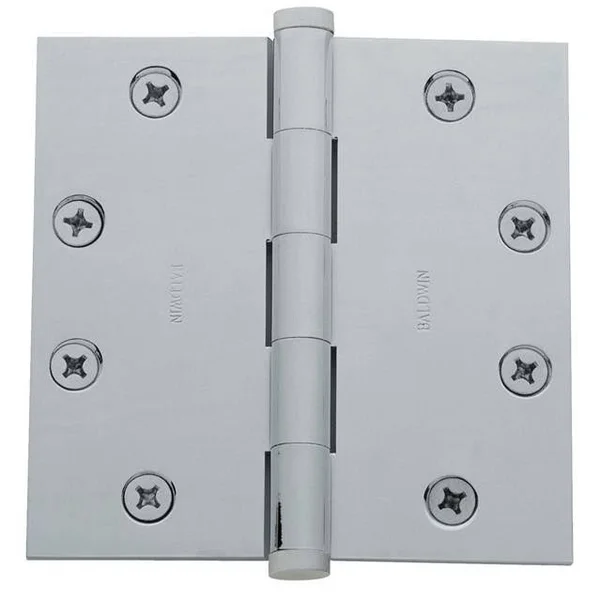

Baldwin Hinge 4.5 x 4.5 Sqr Corner NRP DORB

Description

Each hinge is beveled on the inside leaf to obtain a tight fit when viewing the hinge in a closed position, and furnished with stainless steel, rust-proof pins for added durability. Use three hinges on doors up to and including 7.5 feet (2.3m) and one additional hinge for each additional 2.5 feet (.76m) or fraction thereof. Square Corner Hinge, 4.5" x 4.5". Hinges manufactured from solid brass extrusions have two inherent properties: exceptional strength and precision tolerances. The result is a QUALITY hinge which can withstand above average door weights and stresses with maximum vertical and lateral wear performance. This special application is used when the hinge barrel is exposed to the exterior side of a building (Reverse Bevel Door Conditions). Hinges are furnished standard with button design finials. Knuckles are milled to a clearance of 0.010-Ą (.25mm) to minimize vertical wear. Use three hinges on doors up to and including 7.5 feet (2.3m) and one additional hinge for each additional 2.5 feet (.76m) or fraction thereof. Baldwin’s extruded hinges are machined from a solid brass bar to exact tolerances to ensure an even wear between each knuckle. The screws are fully threaded to the head and have an undercut head for secure installations. Each pin is manufactured from precision ground Type 302, stainless steel material to prevent corrosion. Supplied with fixings. The pin “floats” within the barrel of the hinge, yet is held in a stationary position. Supplied in Singles.

Key Features

• Baldwin full mortise hinges are classified as STANDARD WEIGHT for installation on doors up to 1.75-Ą (44mm) in thickness.
• Each hinge is beveled on the inside leaf to obtain a tight fit when viewing the hinge in a closed position, and furnished with stainless steel, rust-proof pins for added durability.
• All full mortise hinges are supplied standard with appropriate size wood.
• Use three hinges on doors up to and including 7.5 feet (2.3m) and one additional hinge for each additional 2.5 feet (.76m) or fraction thereof.
• Each pin is manufactured from precision ground Type 302, stainless steel material to prevent corrosion.
• Knuckles are milled to a clearance of 0.010-Ą (.25mm) to minimize vertical wear.
