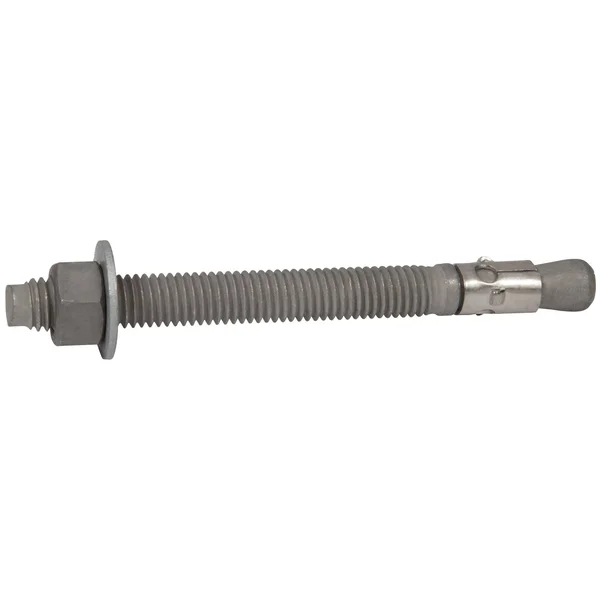

CONFAST 5/8x22 x 6x22 Hot-Dipped Galvanized Wedge Anchor (Box of 20)

Description

Length anchor the length of the anchor is 6in thread length the length of the threads on the anchor is 4in in length. Minimum embedment the minimum anchor embedment into the concrete is 2-3/4in. Hole diameter/bit diameter the anchor requires a 5/8in hole to be drilled in the base material concrete only. This anchor is designed for use in concrete only, and should never be used in block or brick base material. The hole should be drilled with carbide tipped bit that meets ansi standards and used in a hammer drill. Maximum fixture thickness the maximum fixture thickness or the maximum thickness of the material being fastened for a anchor is 2-5/8in. Edge distance it is very important not to install the anchor any closer than 3-1/8in from an unsupported edge of the concrete. This will ensure that the minimum embedment of 2-3/4in will be met. Spacing between anchors each anchor must be spaced a minimum distance of 6-1/4in from each other when measured center to center. Environment the anchor is designed for use in a damp environment. The 5/8in diameter anchor requires the hole in the fixture to be 7/8in. Applications the anchor is made from carbon steel, and is hot-dipped galvanized. Hole diameter/bit diameter the anchor requires a 5/8in hole to be drilled in the base material concrete only. Applications the anchor is made from carbon steel, and is hot-dipped galvanized. Diameter of anchor the diameter of the anchor is 5/8in.

Key Features

• Applications the anchor is made from carbon steel, and is hot-dipped galvanized.
• Length anchor the length of the anchor is 6in thread length the length of the threads on the anchor is 4in in length.
• Therefore, the anchor must be installed so that a minimum of 2-3/4in of the anchor is embedded into the concrete.
• Hole diameter/bit diameter the anchor requires a 5/8in hole to be drilled in the base material concrete only.
• Minimum embedment the minimum anchor embedment into the concrete is 2-3/4in.
• Diameter of anchor the diameter of the anchor is 5/8in.
