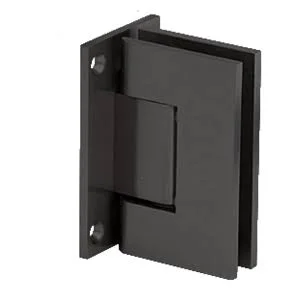

CRL GEN037MBL Matte Black Geneva 037 Series Wall Mount Full Back Plate Standard Hinge Shower Door Hardware

Description

The CRL Geneva Series of professional Hinges is able to accommodate 5/16" (8 mm) to 1/2" (12 mm) glass. If hinges are to be used for other than their intended purpose approval must be obtained from the CRL Shower Door Technical Sales Department. The Pin can be rotated (not flipped upside down) to activate the other side. SPECIFICATIONS: Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass Special Feature: Offers choice of Standard Model factory set at standard 0 degree closing position or 5 degree Pre-Set Model for tighter closure into. Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs. A variety of six styles gives design flexibility including three different Wall Mount and three different Glass-to-Glass types. Geneva Hinges are self-centering and contain a Reversible 5 Degree Pivot Pin. One side of the Pin is marked 90 Degrees. If the 5 Degree Reversible Pivot Pin contained in the hinge does not assist in closing the door to the position desired you may specify the angle needed for a Custom Pivot Pin (up to 45 degrees). GENP1N) are available to accommodate "off-angle" installations. Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs. Cut-out dimensions for CRL hinges may not match those of other brands. The opposite side is marked 85 Degrees. (36 kg) with a maximum door width of 28" (711 mm). Custom finishes are available on request. Custom Pivot Pin: Custom Pivot Pins (Cat.

Key Features

• GEN13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass.
• SPECIFICATIONS: Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass Special Feature: Offers choice of Standard Model factory set at standard 0 degree closing position or 5 degree Pre-Set Model for tighter closure into.
• Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs.
• Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs.
• Made of solid brass with all moving parts (pins and springs) in stainless steel.
• The CRL Geneva Series of professional Hinges is able to accommodate 5/16" (8 mm) to 1/2" (12 mm) glass.
