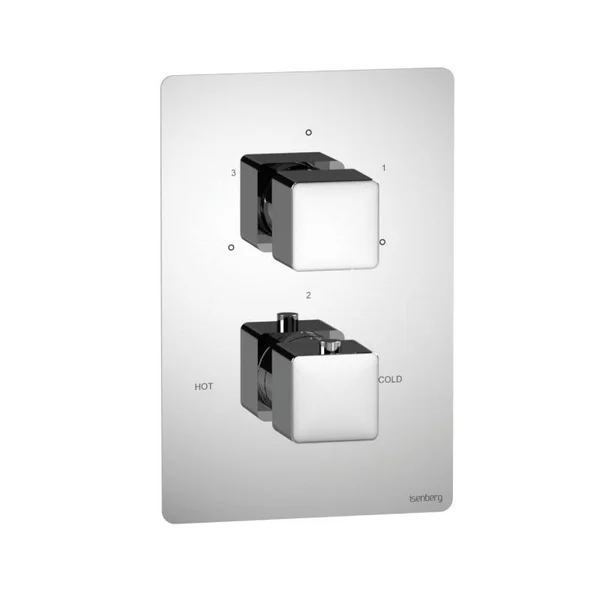

Isenberg 196.4301MB 3/4x22 Thermostatic Valve with 3-Way Diverter and Trim Matte Black

Description

Product Documents SPECIFICATION SHEET PARTS DIAGRAM Installation Installation Documents. In order to adjust the water temperature, one needs to press this button and move the handle to a hot or cold direction. In case, the tile is thicker or valve installed in the wall is too deep, extension kits are available and can be used for elongating both handles of the valve. This will ensure that the trim plate will cover the cut out hole in the wall. HANDLE OPERATION – The bottom handle is used to control the temperature of water flowing through the outlet. The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required) for it to function properly. Covering this ring is the handle knob which has a push-button on the side. Isenberg 3/4′′ Thermostatic Valve with 3-Way Diverter and Trim 196.4301 Product Description SPECIFICATIONS: Solid Brass Valve & Trim Includes Thermostatic Valve Diverts water between 3 outlets. The top handle is capable of controlling the volume of water from full flow to a trickle. The trim plate is used to cover the wall. Also, the value must be installed straight and not at an angle or upside down. VALVE INSTALLATION – As the valve is installed, care should be taken to maintain a proper distance from the back of the valve to the finished tile which should be between 2.77” and 3.44” inches [Rough In Spec]. Each port has full volume control capability. This product meets CAL-Green compliance criteria.

Key Features

• The top handle controls water diversion between the 3 water output ports.
• TRIMS – The trims comprise of a well-finished cover plate and handle knobs.
• ANTI-SCALD RING – Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value.
• VALVE INSTALLATION – As the valve is installed, care should be taken to maintain a proper distance from the back of the valve to the finished tile which should be between 2.77” and 3.44” inches [Rough In Spec].
• The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required) for it to function properly.
• Isenberg 3/4′′ Thermostatic Valve with 3-Way Diverter and Trim 196.4301 Product Description SPECIFICATIONS: Solid Brass Valve & Trim Includes Thermostatic Valve Diverts water between 3 outlets.
