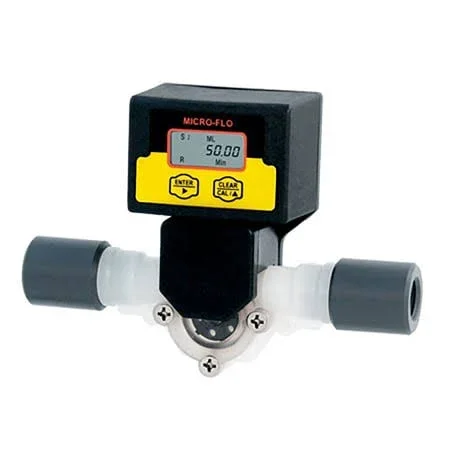

Omega - Micro-Flow Meter, FTB336D

Description

Users can also program custom units. Standard units have a clear PVC viewing lens, PVDF chemical resistant lens are available as an option. No display models have a 5 Vdc current sinking pulse output. The FTB300 Series of digital paddle wheels are an economical choice for low flow rate applications. Available connections include 1/8 FNPT, 1/4 FNPT and 3/8" OD tube fittings. Time units include: minutes, hours, days. Six available flow ranges as low as 30ml/min to 7000 ml/min. They use Infra-red light beam technology. The enclosure is a weather resistant Valox PBT and rated NEMA 4X (IP56). Units with displays have a 6-digit LCD, with up to 4 decimal positions that display both flow rate and total. Available connections include 1/8 FNPT, 1/4 FNPT and 3/8" OD tube fittings. Six available flow ranges as low as 30ml/min to 7000 ml/min. The total reset function can also be disabled. Programming values and total are stored in the non-volitile memory. All units include an open collector alarm output. User selectable scale factors include: flow units, gallons, liters, ounces, and milliliters.

Key Features

• Time units include: minutes, hours, days.
• Available connections include 1/8 FNPT, 1/4 FNPT and 3/8" OD tube fittings.
• User selectable scale factors include: flow units, gallons, liters, ounces, and milliliters.
• All units include an open collector alarm output.
• Six available flow ranges as low as 30ml/min to 7000 ml/min.
• They use Infra-red light beam technology.
